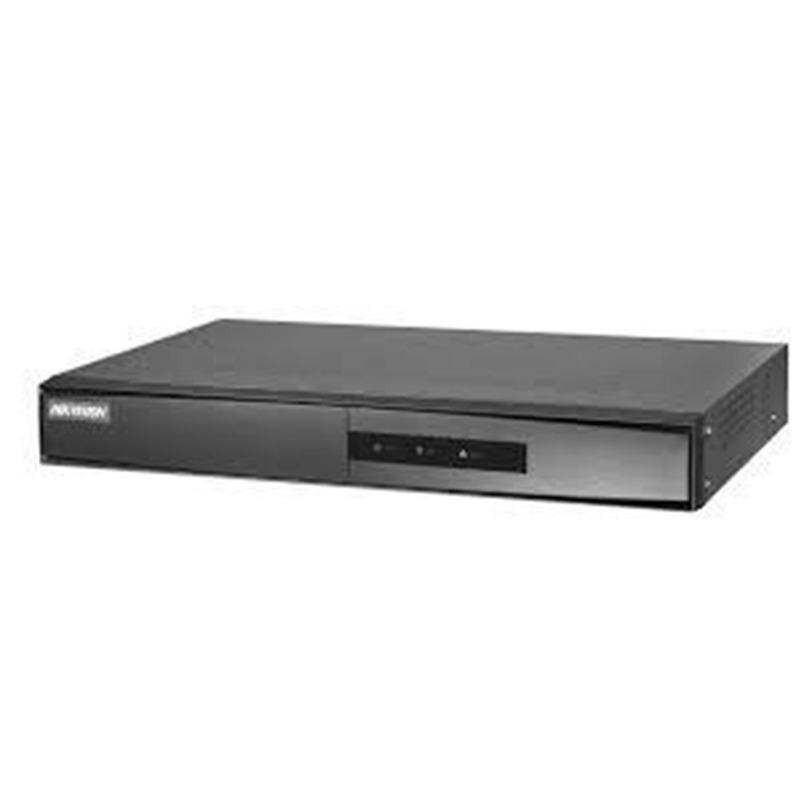

4-ch Mini 1U 4 PoE NVR

• Up to 4 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 6 MP high-definition live view, storage and playback
• Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
• Up to 4-ch @ 1080p decoding capacity
• 1 HDD for continuous video recording
• Compatible with third-party network cameras
• Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
• Metal case for professional industry applications.
• Video And Audio
• IP Video Input4-ch Up to 4 MP resolution
• Incoming/Outgoing Bandwidth40 Mbps 60 Mbps
• VAG/HDMI Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Resolution6MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding
• Decoding FormatH.265+/H.265/ H.264+/H.264
• Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback4-ch
• Capability1-ch @ 6 MP / 4-ch @ 1080p
• Network
• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• POE Interface
• Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 36W
• Supported StandardIEEE 802.3 af/at
• Hard Disk
• SATA1 SATA interface
• CapacityUp to 6TB capacity for each disk
• External Interface
• USB Interface2 × USB 2.0
• General
• Power≤ 50W
• Power Supply48 VDC
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
• Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
• Consumption (Without HDD And PoE)≤ 10 W
• Chassis1U chassis
